Section 2:  Frame Moulding Cutting & Joining Equipment

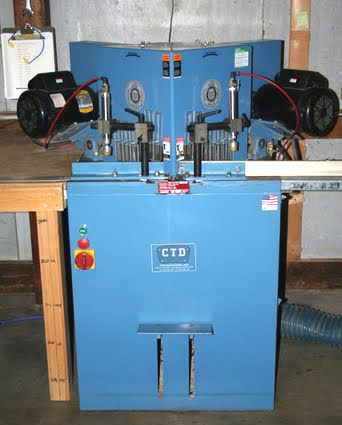

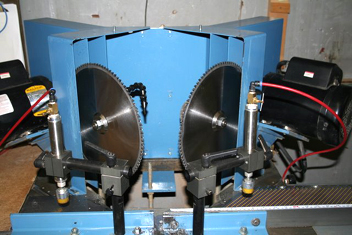

UFE-187    CTD 45FX Double Miter Saw

This machine is in excellent condition. This machine is about 4 years old and has been in storage for 1 year.

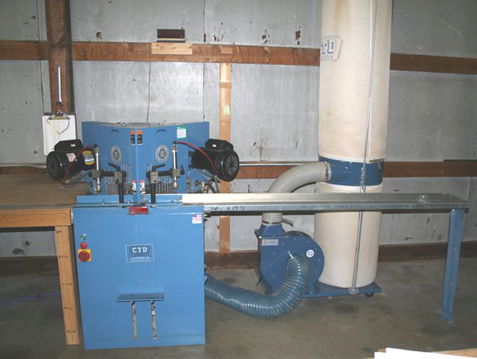

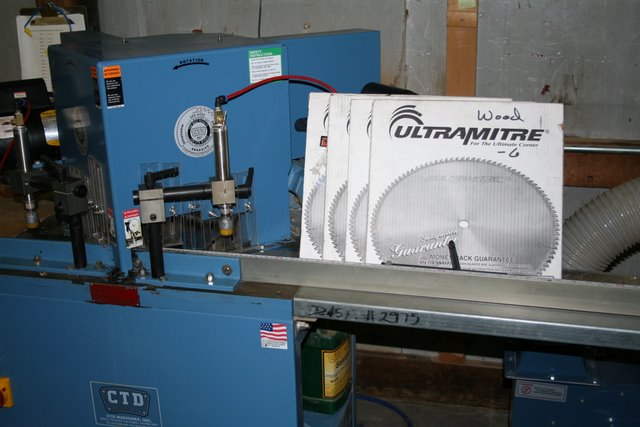

Comes with Extension Arm, Dust Collector, 2 sets of extra blades.

Serial #   /  12" Blades

  Price:   $3,700

This item can be picked up in Kansas or shipped for an additional fee by common carrier. Shipping is not the $6.50 default found in the shopping cart.

TOM-KS-10-2- 09



Information below is from manufacturer's website on the newest model. Call tech support for exact specifications that may differ :

   Manufacturer's Website:  http://ctdsaw.com  - Instruction manual can also be found here:

The D45FX Foot Operated Double Mitre Saw incorporates all the features and specifications of the D45AX except that it is manually foot operated.

Cutting Capacities:

10 (254mm) Blade Capacity

Height          Width

3/4(19mm)   5(127mm)

4 (102mm) 2-3/8(60mm)

12 (305mm) Blade Capacity

Height              Width

7/8(22mm)    5-3/4(146mm)

3-1/4 (83mm)    3(76mm)

14 High Top (355mm) Blade Capacity

Height               Width

2(51mm)        6(152mm)

3.25(83mm)     3-1/2 (89mm)

STANDARD FEATURES & SPECIFICATIONS:

Blade Wear and Angular Adjustments: Each saw head has adjustments for blade variation. Allows for precision alignment of blades to minimizes scrap. Saw heads are adjustable up to 3, always assuring perfect mitres.

Length of Stroke Adjustment: The D45FX is unique in that the stroke of the machine and the position of the blade above the work can be adjusted to use only the stroke needed to cut a particular molding or extrusion. Adjustment bolts in slots position saws close to work, thereby saving time and motion.

Floor Stand: Close coupled heavy gage steel stand completely enclosed with 6 dust outlet. 1200 CFM required.

Actuation: Manual foot pedal.

Return to Frame Moulding Cutting & Joining Equipment Main Page #16
