Section 2:  Frame Moulding Cutting & Joining Equipment

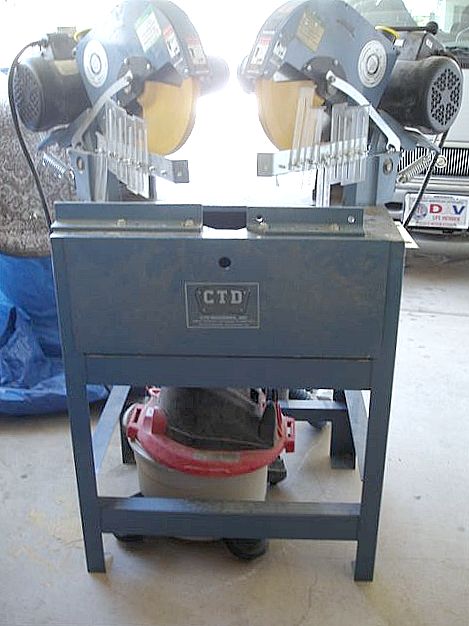

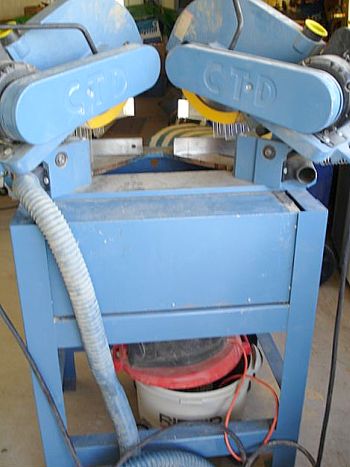

UFE-1399  CTD D20R Double Miter Saw

This machine is in Good Condition.

Serial #35G599K2J

The table measures 22" Wide X 76" Long X 36" Height.

***Reduced***Price:   $2,250

This item can be picked up in Arizona or shipped for an additional fee by common carrier. Shipping is not the $6.50 default found in the shopping cart.

Cheryl-AZ-7-11-11 $2,275 / 4/26/12 $2,250

Information below is from manufacturer's website on the newest model. Call tech support for exact specifications that may differ :

   Manufacturer's Website:  http://ctdsaw.com  - Instruction manual can also be found here:

CTD MODEL D20R A revolutionary idea--right and left saw heads, individually operated on a common base. Gives you a fast, accurate double mitre cut-off that beats anything in it’s price class in the world.

STANDARD FEATURES & SPECIFICATIONS:

Blade Capacity: 12” OD (305mm); saw blades not included.

Spindle & Pivot: Both mounted on pre-loaded and sealed bearings; uses our time tested 200R Series saw head; saw arm, pivot brackets and table are precision machined and ground steel plate and iron.

Arbor: 1” (25.4mm) with 2-1/2” (64mm) saw collars; 3700 RPM of spindle.

Motors & Voltages: 1 H.P. single phase, 115 Volt, Totally Enclosed Fan Cooled Motors with toggle switch and plug; each motor draws 15 amps at 115 Volt; completely enclosed 2-belt drive; 230 Volt with Dual Magnetic Starter available.

Floor Stand: Close coupled heavy gage steel floor stand with removable dust and scrap drawer; Rabbet Measuring System included.

Actuation: Manual hand operation of independent saw heads.

Size & Weight: 46” (117cm) Wide x 22” (56cm) front to back x 56” (142cm) High”; Weight 300 lbs. (136 kg).

Production Rate: Up to five frames per minute; actual production rates vary with the type and width of material to be cut.

Dust Collection & Scrap: The D20R is provided with a dust and scrap drawer; most of the dust and chips will fall into this drawer; empty as needed; 4” (102mm) dust outlet available; 600 CFM required.

Cutting Capacity: 3" (76.2mm) High x 5-3/4" (146mm) Wide on non-ferrous metals, wood, and plastic sections.
