Used Framing Equipment:  Mat Cutters, Moulding Cutting & Joining Equipment, Mounting Presses, Hand Tools

We buy & sell pre-owned picture framing equipment. We also help you to sell your used framing equipment, and help you save on equipment that you may need. All Items are sold "As Is".  Although we strives get obtain the best information from the seller, AIM is not responsible from inaccuracies provided to us by seller. It is the responsibility of the buyer to crosscheck information with seller or manufacturer regarding descriptions that appear in this catalog.

Do you have Questions?  Feel free to our office at 330-405-9421, M-F, 10AM-5PM EST or Email us at info@skylinepictures.com



Section 2:  Frame Moulding Cutting & Joining Equipment

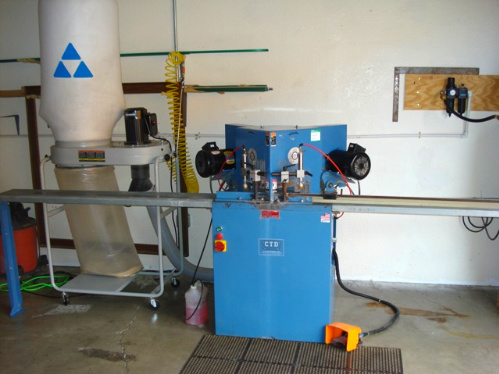

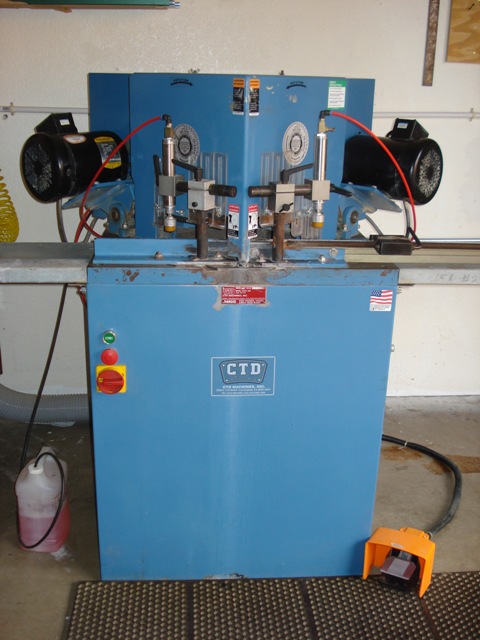

    UFE-1094    CTD D45FX Double Miter Saw

This machine is in Very Good Condition, serviced regularly, and performs well. This foot activated cut off saw is about 8 years old. Include (2) 6' table extensions, Rockwell Dust Evacuation System, and 3 sets of 12" 80 tooth AGE German made blades.

12" Blades / (2) 1 1/2 HP 3 Phase 230V

  Price:   $3,800

This item can be picked up in Arizona or shipped for an additional fee by common carrier. Shipping is not the $6.50 default found in the shopping cart.

RICK-AZ-7-4-10



Information below is from manufacturer's website on the newest model. Call tech support for exact specifications that may differ :

   Manufacturer's Website:  http://ctdsaw.com  - Instruction manual can also be found here:

The D45FX Foot Operated Double Mitre Saw incorporates all the features and specifications of the D45AX except that it is manually foot operated.

Cutting Capacities:

10” (254mm) Blade Capacity

Height          Width

3/4”(19mm)   5”(127mm)

4” (102mm) 2-3/8(60mm)

12” (305mm) Blade Capacity

Height              Width

7/8”(22mm)    5-3/4”(146mm)

3-1/4” (83mm)    3”(76mm)

14” High Top (355mm) Blade Capacity

Height               Width

2”(51mm)        6”(152mm)

3.25”(83mm)     3-1/2” (89mm)

STANDARD FEATURES & SPECIFICATIONS:

Blade Wear and Angular Adjustments: Each saw head has adjustments for blade variation. Allows for precision alignment of blades to minimizes scrap. Saw heads are adjustable up to 3°, always assuring perfect mitres.

Length of Stroke Adjustment: The D45FX is unique in that the stroke of the machine and the position of the blade above the work can be adjusted to use only the stroke needed to cut a particular molding or extrusion. Adjustment bolts in slots position saws close to work, thereby saving time and motion.

Floor Stand: Close coupled heavy gage steel stand completely enclosed with 6” dust outlet. 1200 CFM required.

Actuation: Manual foot pedal.

Return to Frame Moulding Cutting & Joining Equipment Main Page #34
